Aten 4K HDMI Cat 6 Extender (ATEN-VE1821)
Aten 4K HDMI Cat 6 Extender (ATEN-VE1821) 2
Aten 4K HDMI Cat 6 Extender (ATEN-VE1821) 3
Aten 4K HDMI Cat 6 Extender (ATEN-VE1821) 4
Aten 4K HDMI Cat 6 Extender (ATEN-VE1821) 5
Aten 4K HDMI Cat 6 Extender (ATEN-VE1821) 6

Aten 4K HDMI Cat 6 Extender (ATEN-VE1821)

2103506

Normal Fiyat 5,200.00TL İndirilmli Fiyat4,680.00TL 10% İndirim
/
Vergiler (%20 KDV) dahildir.

  • Stokta
  • Stoğa girmesi bekleniyor

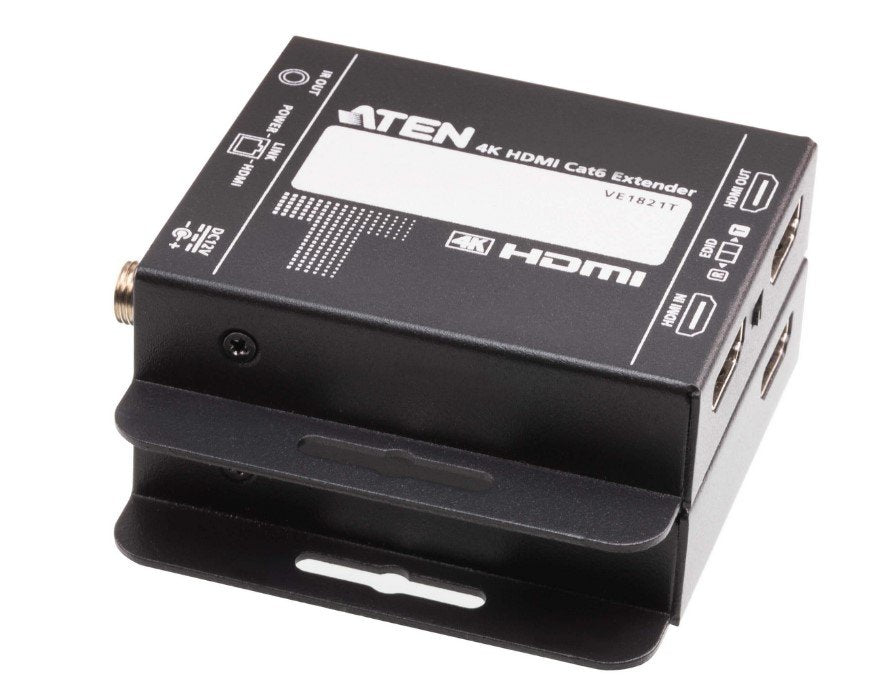

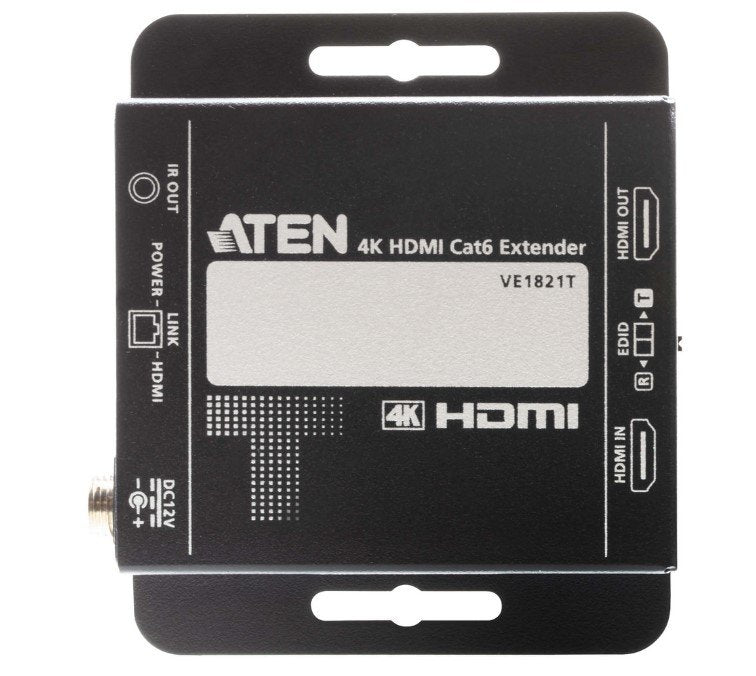

4K HDMI Cat 6 Extender

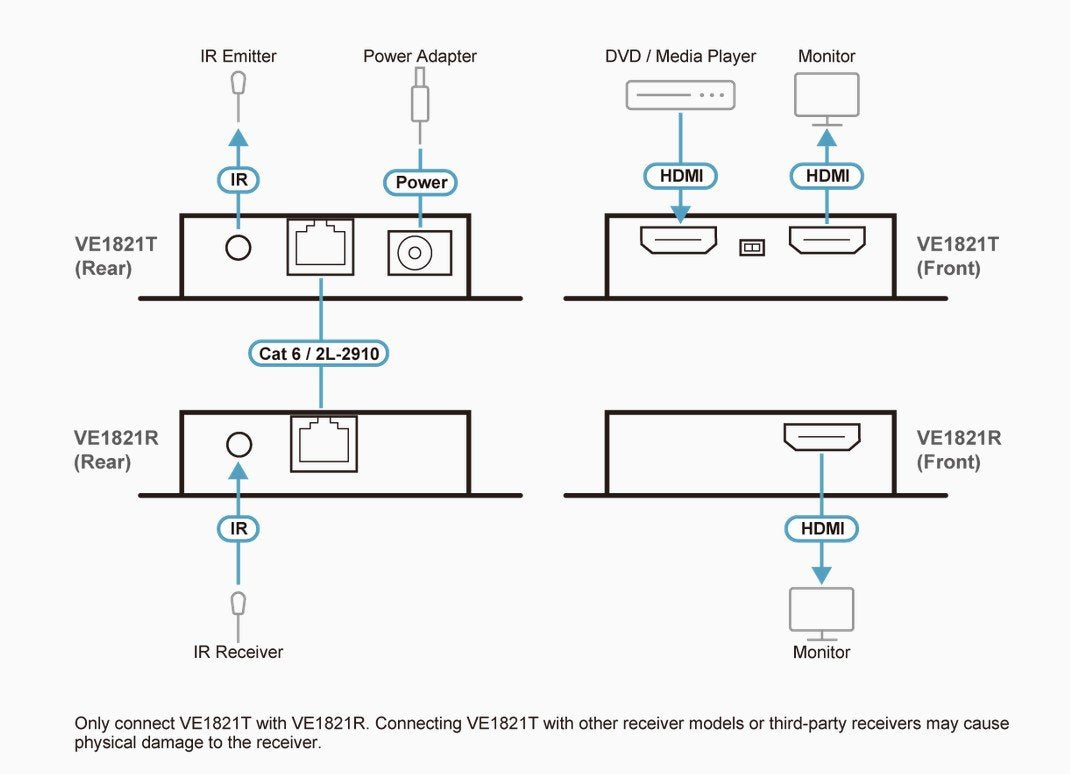

  • Includes a transmitter and a receiver to work in tandem to extend 4K HDMI signals over a Cat 5e / 6 cable

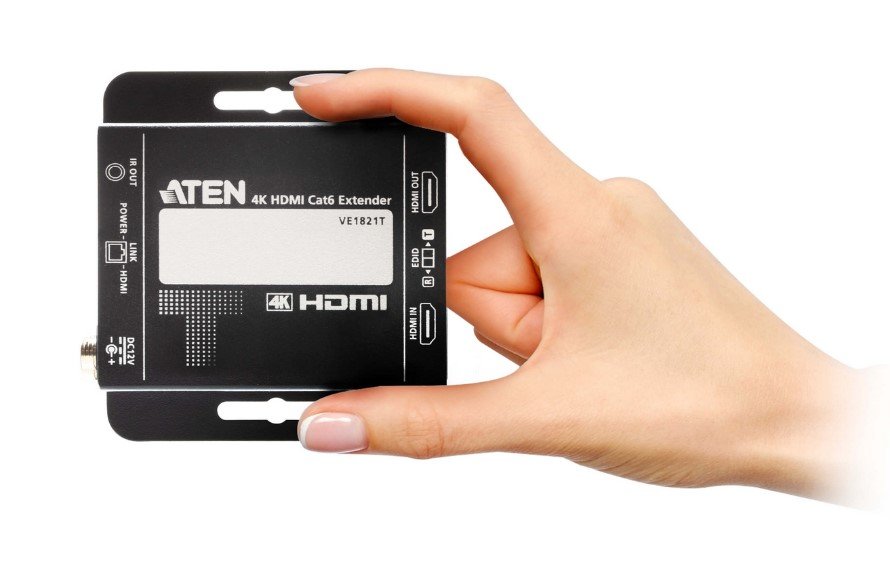

  • Ultra lightweight, palm-sized enclosure for easy mounting or placement in tight spaces
  • Crystal clear 4K HDMI transmission with zero latency across up to 40 m via a Cat 6 cable (ATEN recommended) /30 m via a Cat 5e cable
  • Local HDMI output port on the transmitter unit – enables cascading or users to monitor the UHD signal being extended to the receiver
  • Built-in switch – users can control which is taken from either display
  • EDID Copying Mode – HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display
  • IR signal transmission – the source device connected to the transmitter can be seamlessly controlled from the receiver side
  • PoC (Power over Cable) technology – power can be delivered from the transmitter to the receiver via a Cat 5e / 6 cable to eliminate the need for a bulky external power supply
  • HDMI (3D, Deep Color, 4K); 1.4 compliant
  • Built- in ESD protection
  • Plug-and-play – no additional software needed


Input Resolutions 640x480 @ 60/75 Hz 1920x1080 @ 60 Hz
800x600 @ 60/75 Hz 1920x1200 @ 60 Hz
1024x768 @ 60/75 Hz 480p @ 60 Hz (4:3)/(16:9)
1280x800 @ 60 Hz 576p @ 50 Hz (4:3)
1280x1024 @ 60/75 Hz 640x480 @ 60Hz (4:3)
1400x1050 @ 60 Hz 720p @ 50/60 Hz
1440x900 @ 60 Hz 1080p @ 24/25/30/50/60 Hz
1600x1200 @ 60 Hz 3840x2160p @ 24/25/30 Hz
1680x1050 @ 60 Hz 4096x2160p @ 24/25/30 Hz
Function VE1821R VE1821T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ω
Max. Distance N/A 3 m
Video Output

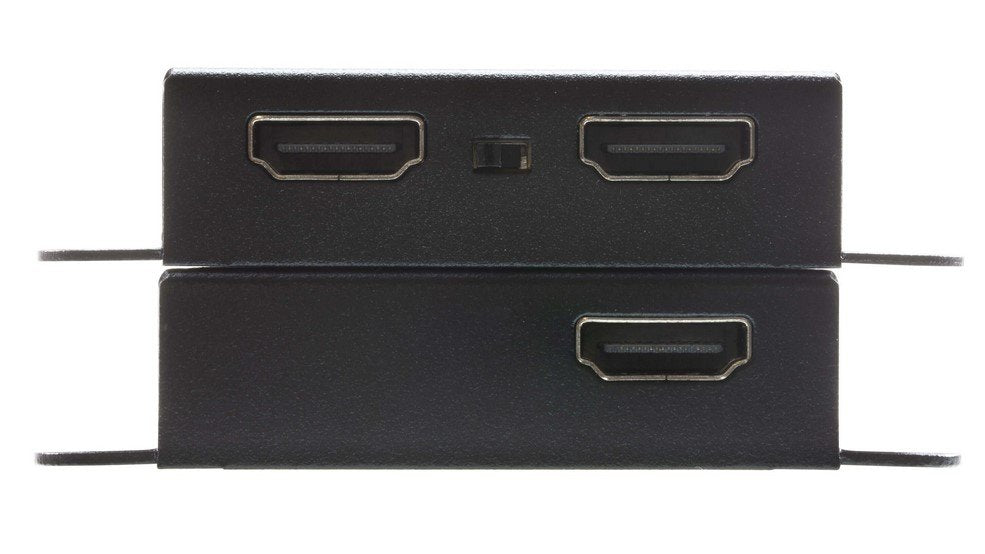

Interfaces 1 x HDMI Type A Female (Black) 1 x HDMI Type A Female (Black)
Impedance 100 Ω 100 Ω
Max. Distance 3 m 3 m
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP1.4 Compatible
HDMI (3D, Deep Color, 4K)
HDCP1.4 Compatible
Max. Resolutions / Distance Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910);

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910);

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A
Control
IR Channel 1 x Mini Stereo Jack Female (Black);
Single way bypass channel from receiver to transmitter
1 x Mini Stereo Jack Female (Black);
Single way bypass channel from receiver to transmitter
Switches
Mode Switch N/A EDID Mode Selection (Read EDID from Transmitter HDMI output or Receiver HDMI output)
Connectors
Power 1 x RJ-45 Female
(Power over Cable, power supply from VE1821T)
1 x DC Jack (Black) with locking

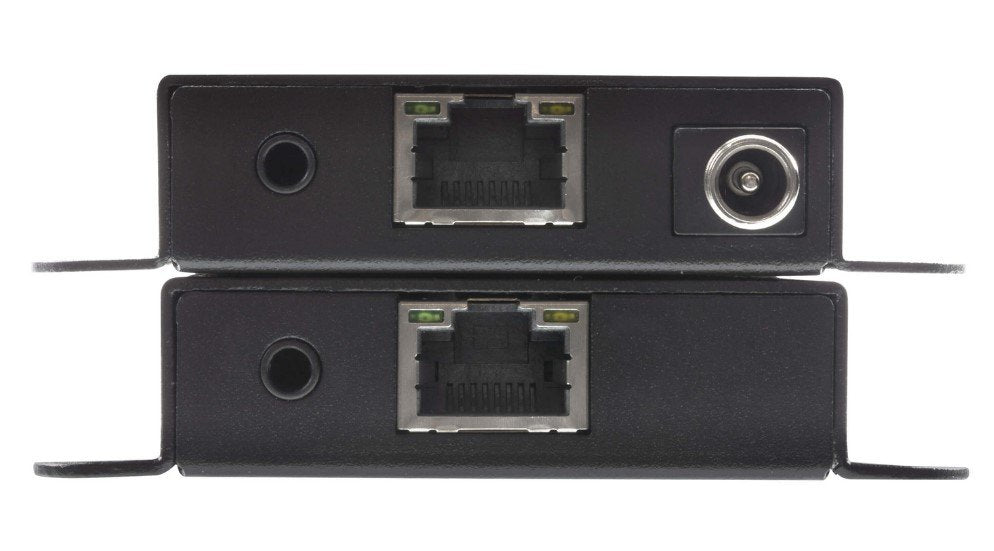

Unit To Unit 1 x RJ-45 Female 1 x RJ-45 Female
Power Consumption POC:0.87W:4BTU DC12V:1.86W:9BTU
Environmental
Operating Temperature 0 - 40°C 0 - 40°C
Storage Temperature -20 - 60°C -20 - 60°C
Humidity 20 - 90% RH, Non-Condensing 20 - 90% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.12 kg ( 0.28 lb ) 0.12 kg ( 0.28 lb )
Dimensions (L x W x H) with bracket 7.95 x 6.80 x 1.65 cm
(3.13 x 2.68 x 0.65 in.)
7.95 x 6.80 x 1.65 cm
(3.13 x 2.68 x 0.65 in.)
Dimensions (L x W x H) without bracket 5.75 x 6.80 x 1.65 cm (2.26 x 2.68 x 0.65 in.) 5.75 x 6.80 x 1.65 cm (2.26 x 2.68 x 0.65 in.)

Package Contents

  • 1x VE1821T 4K HDMI Cat 6 Extender (Transmitter)
  • 1x VE1821R 4K HDMI Cat 6 Extender (Receiver)
  • 1x IR emitter cable
  • 1x IR receiver cable
  • 1x power adapter and 4 power plugs
  • 1x user instructions
